Technical Summary
| Product type | SIMOTICS M compact asynchronous motor |
|---|---|
| Speed at 2000 r/min | 64 kW 306 Nm 125 A |
| Speed at 2300 r/min | 72 kW 299 Nm 124 A |
| Speed at 2650 r/min | 83 kW 299 Nm 125 A |
| Speed at 2800 r/min | 87 kW 297 Nm 124 A |
| Voltage | 376 V 420 V 460 V 500 V |
| Cooling | water cooling |
| Degree of protection | IP65 |
| Encoder | Incremental encoder HTL 1024 S/R |
| Connection | Connection via terminal block (additional terminal box) |
| Temperature sensor | KTY 84-130 |
| Design | IM B35 (IM V15, (IM V35) shaft with fitted key FULL-KEY BALANCING |
Key Features

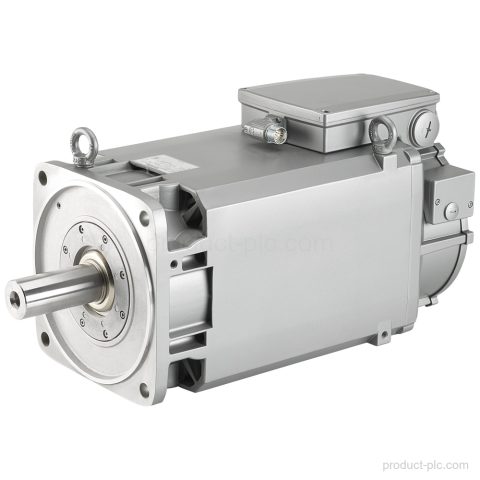

SIMOTICS M compact asynchronous motor
Compact asynchronous motor for the SIMOTICS M series.
Compact asynchronous motor for the SIMOTICS M series.
Water cooling and IP65
Water cooling with degree of protection IP65.
Water cooling with degree of protection IP65.
Incremental encoder
Incremental encoder HTL 1024 S/R (encoder HTL 1024 S/R).
Incremental encoder HTL 1024 S/R (encoder HTL 1024 S/R).
Connection arrangement
Connection via terminal block (additional terminal box).
Connection via terminal block (additional terminal box).
Mechanical design
Design IM B35 (IM V15, (IM V35) shaft with fitted key FULL-KEY BALANCING.
Design IM B35 (IM V15, (IM V35) shaft with fitted key FULL-KEY BALANCING.
Temperature sensor
With temperature sensor KTY 84-130.
With temperature sensor KTY 84-130.
Frequently Asked Questions
What is Siemens 1PH8166-1WG23-1BB1?
It is a SIMOTICS M compact asynchronous motor.
What speed and output ratings are listed for 1PH8166-1WG23-1BB1?
2000 r/min 64 kW 306 Nm 125 A, 2300 r/min 72 kW 299 Nm 124 A, 2650 r/min 83 kW 299 Nm 125 A, and 2800 r/min 87 kW 297 Nm 124 A.
What encoder does 1PH8166-1WG23-1BB1 use?
It uses an Incremental encoder HTL 1024 S/R.
How is 1PH8166-1WG23-1BB1 connected and mounted?
It has connection via terminal block with an additional terminal box and design IM B35 (IM V15, (IM V35) shaft with fitted key FULL-KEY BALANCING.
What protection and cooling data are specified for 1PH8166-1WG23-1BB1?
The motor has water cooling and degree of protection IP65.
